Industrial Ventilation Systems: Complete Design Guide

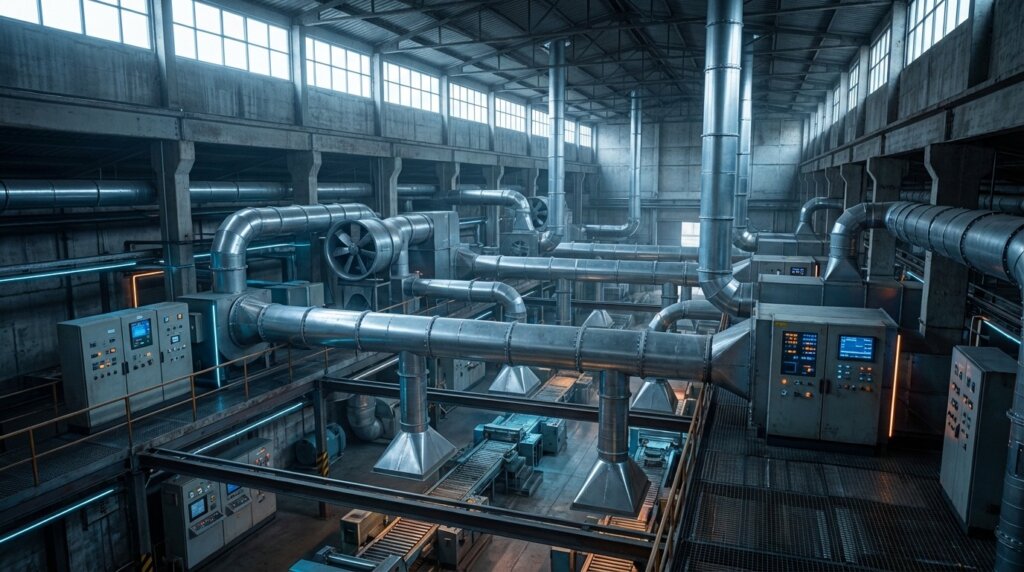

Introduction: Why Industrial Ventilation Design Matters

Industrial ventilation systems play a critical role in protecting workers from airborne contaminants like dust, fumes, vapors, mists, and gases.[5][6] Poorly designed systems can cause serious health issues—respiratory diseases, poisoning, cancer risks, discomfort—as well as fire and explosion hazards in environments with combustible dust or flammable vapors.[5][6]

Beyond worker safety, ventilation design impacts regulatory compliance, energy use, and operational costs. Facilities often recognize the need to redesign or upgrade after worker complaints, failed exposure tests, visible dust or corrosion, process changes, or new audits.

A well-designed industrial ventilation system balances three core objectives: effective contaminant control, code compliance, and energy-efficient operation throughout the system’s lifecycle.[2][5] This guide presents a structured, step-by-step approach to support engineers, EHS professionals, and plant managers in informed decision-making.

Industrial Ventilation Basics

Definition and Purpose Compared to Comfort HVAC

An industrial ventilation system mechanically provides fresh air and removes contaminated air using supply and exhaust components.[5] It differs from comfort HVAC by focusing on controlling harmful contaminants at or near their source, rather than primarily regulating temperature and humidity for occupant comfort.[3][5][6]

Industrial ventilation demands:

• Higher capture and transport velocities
• Targeted hoods or enclosures
• Specialized air cleaning devices
• Controlled pressure relationships between spaces

These systems must address particulate settling, corrosion, combustible dust, filtration efficiency, noise, and the energy effect of conditioning large volumes of outdoor air.[2][5]

Local exhaust ventilation is generally more effective than general dilution ventilation for hazardous substances, according to industrial standards.[5]

Types of Industrial Ventilation Systems

Industrial ventilation systems divide mainly into:

• General (dilution) ventilation: Introduces clean air and exhausts contaminated air uniformly across a space, reducing contaminant levels by mixing.[5] Suitable for low-level, evenly distributed, non-toxic emissions, e.g., warehouses or heat control.[5]
• Local exhaust ventilation: Captures contaminants at or near their source before spreading.[5] It comprises five elements:[5] hood, ducts, air cleaning device, fan, and exhaust stack. Local exhaust is the preferred control for welding fumes, grinding dust, and chemical handling because it achieves lower exposures with less airflow.[5][6]

Other configurations include ambient ventilation systems maintaining background contaminant levels and process-specific systems like paint booths and fume hoods.[2][5] Typically, local exhaust is applied first, supplemented by general ventilation for heat and odor control.

Core Components of an Industrial Ventilation System

Supply Air System Components and Functions

The supply side usually includes:

• Air inlets and louvers: Admit outdoor air while controlling weather, debris, and pests.[4][5]
• Filters/air cleaners: Protect occupants and equipment from outdoor pollutants and prevent equipment fouling.[4][5]
• Heating and cooling equipment: Condition makeup air to maintain temperature/humidity, crucial in extreme climates.[2][5]
• Supply fans: Provide pressure to move air through the system.
• Ductwork and registers: Distribute conditioned air, controlling velocity and direction. Perforated ducts or plenums help evenly distribute air, especially in spaces above 15 ft.[2]

Proper supply air design avoids interference with contaminant capture at exhaust hoods.

Exhaust System Components and Functions

Key exhaust system elements include:

• Hoods: The first and most critical component, designed to enclose or capture contaminants effectively.[5][6] Types include:
• Enclosing hoods (cabinets, fume hoods)
• Receiving hoods (canopy, backdraft)
• Capturing hoods (openings near source)[2][5]
• Ductwork: Transports contaminated air to air cleaning devices and fans. Must maintain minimum transport velocities to prevent particulate settling and plugging.[2][6]
• Air cleaning devices: Remove contaminants before exhaust or recirculation. Common types:
• Baghouses, cartridge collectors (dry dust/fumes)
• Wet scrubbers (soluble gases, sticky dust)
• Mist collectors (oil/coolant mists)[1][2][5]
• Exhaust fans: Overcome system pressure losses; fan type varies by application.[1][2]
• Exhaust stacks: Disperse treated air to atmosphere at proper height and velocity to minimize re-entrainment.[5][6]

Control and Monitoring Components

Modern systems use:

• Dampers: Balance airflow and isolate sections.
• Variable Frequency Drives (VFDs): Adjust fan speed to reduce energy use and maintain control parameters.[1][2]
• Sensors: Monitor pressures, flows, contaminant levels, temperatures.
• Interlocks: Ensure supply and exhaust fans operate together safely, preventing unsafe negative building pressures.[2]
• Building automation interfaces: Centralize monitoring, alarms, and shutdowns based on thresholds.[1][2][6]

Field note: Without proper interlocks, exhaust fans can run without makeup air, creating dangerous negative pressure and compromising contaminant capture.[2]

Step-by-Step Industrial Ventilation System Design

Identify Processes, Contaminants, and Exposure Limits

Start by identifying all contaminant sources, their processes, materials, generation rates, and existing controls.[6] Common contaminants include welding fumes, grinding dust, solvents, acids, combustible dusts, and biological agents.[5][6] Reference applicable occupational exposure limits (OSHA PELs, ACGIH TLVs).

Field observations like smoke tests and air sampling help confirm source characteristics and exposure patterns critical for selecting local exhaust or general ventilation and for demand-controlled ventilation strategies.

Define Performance Criteria

Establish clear capture velocities, airflow rates, airborne concentration targets, and room air changes.[2][5] Standards provide velocity examples based on process and hood enclosure degree.[6]

Include temperature, space pressurization, and emission/odor constraints. Early criteria definition avoids under- or over-design, balancing health, compliance, and operating costs.

Hood Selection and Design

Choose or design hoods to enclose processes as much as practical—enclosing hoods require less airflow for effective control.[2][6] Where full enclosure is impossible, position receiving or capturing hoods to intercept contaminant flows.[2]

Key design parameters:

• Face or slot velocity
• Capture distance and hood shape
• Orientation relative to source and supply airflows

Avoid cross-drafts and maintain worker access without compromising containment.[2][5]

Ductwork Design and Sizing

Use “balance by design” or blast gates to split airflow per hood requirements while maintaining transport velocities sufficient to suspend particulates.[2][6]

Calculate friction losses through charts and sum losses from fittings, ducts, and hoods to determine total system pressure drops.[2]

Ducts must meet SMACNA industrial construction standards for gauge, reinforcement, and support spacing.[2][6] Include clean-out doors at bends and low points for maintenance.[2]

Air Cleaning Device Selection

Select air cleaners based on contaminant type, particle size, temperature, moisture, and whether recirculation will occur.[1][2][5] Options include:

• Baghouses/cartridge filters: For dry dust and fumes; require pulse cleaning and combustible dust protections.[1][2]
• Wet scrubbers: For soluble or corrosive gases and sticky dusts.
• Mist collectors: For oil and coolant aerosols.

Locate devices outside the building where possible for safety, and plan for pressure drops, maintenance, and waste handling.[2]

Fan Selection and System Pressure Calculations

Determine exhaust volumetric flow and compute system pressure losses including duct friction, fittings, hoods, and air cleaners.[6]

Choose fan types compatible with the application (centrifugal fans preferred for particulate-laden air).[1][2] Use manufacturer curves to match flow and pressure at peak efficiency.

Energy-efficient motors and VFDs are recommended; fans should have vibration isolation and flexible connectors to reduce noise.[2][4]

Fan selection calculation overview
1. Calculate required exhaust airflow (cfm)
2. Sum pressure losses from ductwork, hoods, filters (inches WC)
3. Identify critical branch with highest total pressure drop
4. Select fan meeting required flow and pressure at peak efficiency from curves
5. Verify motor sizing for startup loads and process conditions
6. Plan for vibration isolation and noise control

Replacement Air and Room Pressure Control

Makeup air must match exhaust volume to avoid negative building pressure which causes safety and operational issues.[2][6] Determine whether rooms need slightly negative, neutral, or positive pressure based on process risks.

High-ceiling spaces benefit from perforated ducts or plenums for uniform makeup air distribution avoiding drafts and interference with local exhaust hoods.[2]

Controls, Interlocks, and Safety Systems

Provide interlocks ensuring supply and exhaust fans operate together to maintain safe pressure balance.[2] Include interlocks between process equipment and ventilation where necessary.

Emergency ventilation, alarms for high contaminant levels or fan failures, and room pressure sensors enhance safety and system reliability.[2]

Fire detection integration, fire dampers, and explosion venting are critical for combustible dust or flammable gas environments.

Commissioning & control workflow
– Verify interlock wiring and labeling for supply-exhaust fan pairs
– Test sensor responses (pressure, contaminant levels)
– Configure alarm thresholds and emergency purge modes
– Validate system shutdown interlocks tied to process equipment
– Integrate fire dampers and explosion vents per standards

Documentation, Installation, Testing & Balancing

Prepare detailed line drawings showing hood locations, ducts, fans, air cleaning devices, and dimensions.[2][6]

During installation, follow SMACNA duct standards for construction, supports, and clean-outs. Avoid undocumented changes.

Testing and balancing:

• Measure airflow at hoods and ducts
• Verify capture velocities and room pressurization
• Adjust dampers and fan speeds to meet design targets
• Confirm performance with industrial hygiene monitoring

Maintain commissioning records for fan curves, filter types, control setpoints, and baseline pressure readings.[1][2][6]

Design Considerations by Industry and Process

Metal Fabrication: Welding and Grinding Dust

Welding fumes and grinding dust demand local exhaust ventilation with enclosing hoods or articulated extraction arms.[5][6] Backdraft and side draft hoods capture grinding dust effectively.

Dust collectors (baghouses, cartridge filters) with explosion protection ensure safe handling of combustible metal dusts.[1][2]

Heat loads from welding may require supplemental general ventilation for comfort and equipment cooling.

Paint Booths and Coating Operations

Spray booths use downdraft or crossdraft ventilation to carry overspray away from painters.[2] Key features include:

• Uniform airflow at recommended face velocities
• Explosion-proof equipment and non-sparking fan wheels
• High-efficiency filters with loading monitoring
• Tempered makeup air delivered via ceiling plenums or perforated ducts[2][6]

Emissions and odor control may call for solvent recovery or carbon adsorption.

Chemical Processing, Laboratories, and Pharmaceutical

These sectors require specialized controls:

• Chemical fume hoods with controlled face velocities
• Glove boxes with HEPA filtration and negative pressure
• Local exhaust at reactors, mixing tanks, weighing stations
• Room pressurization hierarchies (negative for hazardous rooms; positive for clean areas)
• Temperature and humidity control with HEPA filters and redundant fans
• Sophisticated building automation to prevent cross-contamination[5][6]

Food and Beverage and Dust-Generating Processes

Operations generate combustible organic/inorganic dust requiring:

• Local exhaust with enclosures at transfer points
• Dust collectors with explosion venting, isolation valves, and grounding
• Corrosion-resistant, cleanable materials for ducts and hoods
• General ventilation to control residual dust and temperature
• Preferably locating dust collection systems outside main buildings to reduce explosion risks[2][6]

Common Design Mistakes and How to Avoid Them

• Undersized or unconditioned makeup air: Leads to negative pressure, backdrafting, and reduced hood performance. Always calculate and condition makeup air.[2][6]
• Poor hood placement and design: Hoods too far or oriented against contaminant flow reduce capture effectiveness. Enclose processes where possible; follow capture velocity guidelines.[2][6]
• Insufficient transport velocity in ducts: Causes material settling, plugging, fire risk, and maintenance issues. Maintain adequate velocities and install clean-outs.[2][6]
• Ignoring SMACNA duct standards: Using inadequate duct construction results in leakage, failure, or collapse. Specify gauge, reinforcement, and hanger spacing per standards.[2][6]
• Lack of interlocks and controls: Operating exhaust without makeup air or allowing process operation without ventilation endangers safety. Provide interlocks and clear labeling.[2]
• Overreliance on rules of thumb: Skipping explicit calculations can cause oversizing or undersizing. Use stepwise design procedures from UFC and CED Engineering.[2][6]

Common mistake: Installing exhaust fans without corresponding makeup air controls is a frequent cause of negative building pressure and ventilation failure. Early coordination of these systems is essential.[2]

Energy Efficiency and Optimization Strategies

Industrial ventilation systems often represent significant facility energy use due to high exhaust volumes and conditioned makeup air.[1][2][5]

Key strategies:

• Variable Frequency Drives (VFDs): Adjust fan speed to demand, saving power as fan power varies with cube of speed.[1][2]
• Demand-controlled ventilation: Sensors modulate airflow based on contaminants or occupancy.
• Heat recovery systems: Recover heat from exhaust air with wheels, run-arounds, or heat exchangers, reducing makeup air conditioning loads.[2][5]
• Efficient motors: Properly sized for duty points avoid wasted energy.[2]
• Good duct design: Smooth transitions, minimal elbows, and proper sizing reduce pressure losses.
• Regular maintenance: Keeps filters, coils, and collectors clean to prevent excess resistance.
• System re-balancing: Ensures air is focused where needed, reducing wasted ventilation.[1][2]

Smart monitoring enables early detection of off-spec operation and efficiency losses, supporting lifecycle cost reduction without compromising safety.

Compliance, Standards, and Best-Practice References

Industrial ventilation design follows multiple standards:

• OSHA regulations: Enforce exposure limits and safety requirements.[5][6]
• ACGIH Industrial Ventilation Manual: Offers capture velocities and design methods.
• UFC 3-410-04: Provides federal and military design criteria and a 9-step design process.[6]
• CCOHS guidelines: Define system components and ventilation principles.[5]
• SMACNA Duct Construction Standards: Define duct gauge, reinforcement, leakage control.[2][6]

Other applicable codes include NFPA for combustible dust, ASHRAE ventilation guidelines, and local fire/building codes.

Designers should use these as tools, avoiding over- or under-design, and collaborate with engineers, hygienists, and EHS professionals for tailored solutions.

Planning a New System or Retrofit: Practical Checklist

Information to Gather Before Starting a Design Project

• Process descriptions, flow diagrams, schedules, and materials
• Equipment layouts and emission source locations
• Historical industrial hygiene data and exposure records
• Applicable regulatory and corporate standards
• Existing ventilation and HVAC drawings
• Utility constraints (power, heating/cooling availability)
• Future expansion or process change plans[2][5][8]

Early collection of detailed information streamlines design and reduces costly changes.

Key Questions to Ask Designers and Contractors

• How will contaminant sources be controlled to meet exposure limits?
• Which standards and guidelines are followed and how are they applied?
• How are hood, duct, and fan sizes determined, and can calculations/drawings be provided?
• What air cleaning devices and efficiencies are expected, including explosion protection?
• How is replacement air handled and room pressurization maintained?
• What energy efficiency features are included (VFDs, heat recovery)?
• How will commissioning, testing, and balancing be performed?
• What maintenance provisions and monitoring are planned?[2][5][6]

Clear answers help focus on lifecycle performance, reliability, and compliance over initial costs.

Conclusion and Next Steps

Industrial ventilation systems are essential for worker health, safety, and regulatory compliance in industrial settings.[5][6] Effective design integrates properly selected hoods, sized ductwork, suitable air cleaners, balanced supply and exhaust air, and robust controls into a coordinated system.[2][5][6]

Success follows a structured approach: from contaminant identification and performance criteria definition through commissioning and verification, considering future flexibility and energy costs.[2][6]

Facilities should start by documenting processes and contaminants and engage qualified engineers and industrial hygienists familiar with industrial ventilation standards.[2][5][6] Ongoing monitoring, maintenance, and reassessment ensure sustained safety, compliance, and cost-effective operation.

Key takeaways to ensure safety, compliance, and cost efficiency in industrial ventilation design

FAQ

What are the main components of industrial ventilation systems?

Industrial ventilation systems primarily include supply air components (inlets, filters, heating/cooling units, fans, ducts, registers), exhaust components (hoods, ducts, air cleaners, fans, stacks), and control systems (dampers, VFDs, sensors, interlocks).

How to design an industrial ventilation system for compliance?

Design starts with identifying contaminants and exposure limits, defining performance criteria, selecting proper hoods, sizing ducts for transport velocity, choosing air cleaning devices, fans, and balancing supply and exhaust air, following standards like UFC and ACGIH.[2][5]

What standards should industrial ventilation follow?

Key standards include OSHA exposure regulations, ACGIH Industrial Ventilation Manual, UFC 3-410-04, CCOHS guidance, and SMACNA duct construction standards. Compliance ensures system safety, efficacy, and regulatory acceptance.

How to calculate airflow in industrial ductwork?

Airflow calculation involves determining required capture velocities, sizing ducts to maintain minimum transport velocity, calculating friction and fitting losses to find total pressure drop, and selecting fans to overcome system resistance.[2][6]

What are common challenges in industrial ventilation design?

Common issues include improper makeup air sizing, poor hood placement, insufficient duct velocity leading to plugging, ignoring duct construction standards, lack of interlocks, and reliance on rules of thumb instead of calculations.

How to improve energy efficiency in ventilation systems?

Implement VFDs, demand-controlled ventilation, heat recovery systems, efficient motors, optimized duct design, and regular maintenance. These strategies reduce energy consumption while maintaining control performance.[1][2][5]

What safety measures are essential in industrial ventilation?

Safety requires interlocked supply and exhaust fans, continuous monitoring, alarms for high contaminant levels or equipment failure, emergency ventilation modes, and fire/explosion protection such as fire dampers and dust collector isolation.

How to control noise in ventilation systems?

Noise control involves selecting quiet fan types, mounting fans on vibration-isolating bases with flexible connectors, and designing smooth duct transitions to minimize turbulence and sound transmission.[2][4]

Industrial Ventilation Systems Guide | UFC 3-410-04 | CED Engineering PDF | CCOHS Ventilation
