Double Wall Rectangular Duct
Leading Double Wall Rectangular Duct Suppliers in China
As a top manufacturer in China, BromingHvac specializes in producing premium double wall rectangular ducts, perfect for a variety of industrial applications. Our ducts are engineered for superior insulation and noise control, ensuring both long-lasting performance and efficiency for your HVAC systems. Reach out to us today to discover how our products can improve your ventilation setup. Choose BromingHvac for all your double wall rectangular duct solutions.
Save a minimum of 35% or more on your purchases.

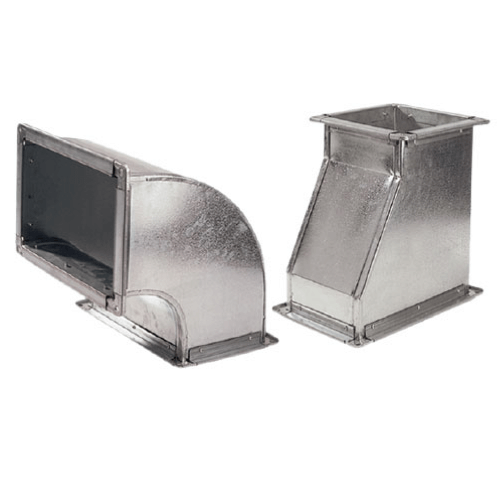

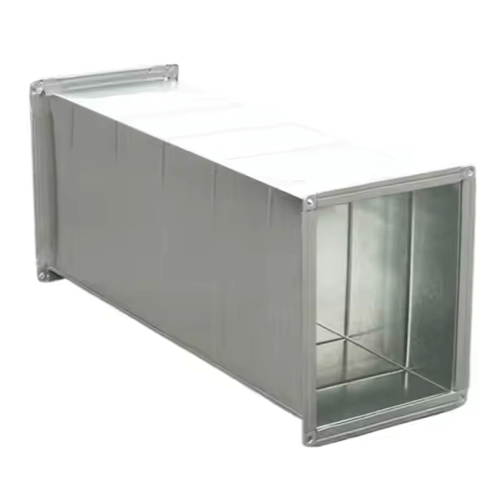

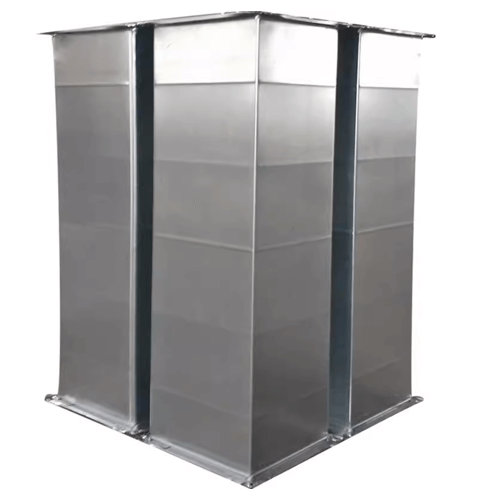

Broming’s Double Wall Rectangular Duct
Regardless of whether you are involved in industrial ventilation, HVAC systems, or any other application, our Rectangular Ducts have been designed to meet your specific needs.
BromingHvac introduces an advanced design approach for Double Wall Rectangular Ducts, incorporating cutting-edge manufacturing techniques that ensure the consistent quality and optimal performance of your HVAC systems.
Key Features:
Overall, BromingHvac’s Double Wall Rectangular Ducts are a high-performance, versatile solution for HVAC systems, offering manufacturers and installers a reliable, energy-efficient option to improve air quality and streamline system operations. These advanced features help you achieve superior performance and remain competitive in today’s evolving market.
Learn More
Our Double Wall Rectangular Duct Features
Thermal and Acoustic Performance
The double wall structure significantly reduces energy loss and sound transmission, maintaining a stable air temperature throughout the duct network.
Durable Construction
Both inner and outer layers are fabricated from galvanized steel, providing strength, rigidity, and resistance to corrosion over long-term operation.
Energy Efficiency
By minimizing temperature variation and air leakage, double wall ducts enhance HVAC system performance and reduce operational energy costs.
Custom Configurations
Available in various dimensions, insulation thicknesses, and connection systems to match project-specific designs and space constraints.
We offer the following double wall rectangular duct

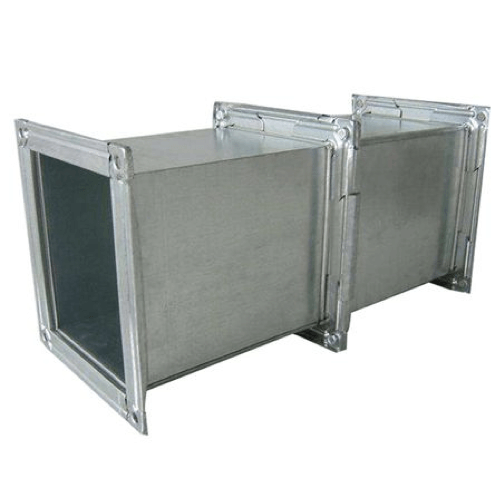

TDF or ductmate
Offered with snap lock or Pittsburgh longitudinal seams, with sealant is available in the seams upon request.
Solid or perforated inner liner
Available with various thicknesses of insulation
Metal types including G90 galvanized, aluminum, stainless, black iron, and paint grip
Built to SMACNA standards
Offered with snap lock or Pittsburgh longitudinal seams, with sealant is available in the seams upon request.
Solid or perforated inner liner
Available with various thicknesses of insulation
Metal types including G90 galvanized, aluminum, stainless, black iron, and paint grip
Built to SMACNA standards
Specifications for Our Double Wall Rectangular Duct
| Inner Wall | Galvanized Steel , Aluminum, or Stainless Steel |
|---|---|
| Outer Wall | Galvanized Steel , Aluminum, or Stainless Steel |
| Insulation | Glass wool / rock wool / foam board |
| Insulation Thickness | 25–50 mm (optional) |
| Sheet Thickness | 0.5–1.2 mm (per layer) |
| Connection Type | TDC / TDF / Flange / Slip Joint |
| Standard Length | 1000–1500 mm per section |
| Leakage Class | SMACNA Class 3 or higher |
| Standards | SMACNA / DW144 / ISO 9001 |
Applications & Manufacturing of Double Wall Rectangular Duct
Double Wall Rectangular Ducts are widely utilized in HVAC projects that require superior insulation, high structural stability, and efficient airflow.
Each double wall rectangular duct is manufactured from premium galvanized steel coils, utilizing automated cutting and folding machines to ensure precise dimensions. The advanced production process guarantees tight tolerances, reinforced seams, and exceptional leak-tightness, making them ideal for both temperature and sound control in demanding HVAC systems.
Each double wall rectangular duct is manufactured from premium galvanized steel coils, utilizing automated cutting and folding machines to ensure precise dimensions. The advanced production process guarantees tight tolerances, reinforced seams, and exceptional leak-tightness, making them ideal for both temperature and sound control in demanding HVAC systems.
Applications
Manufacturing Process

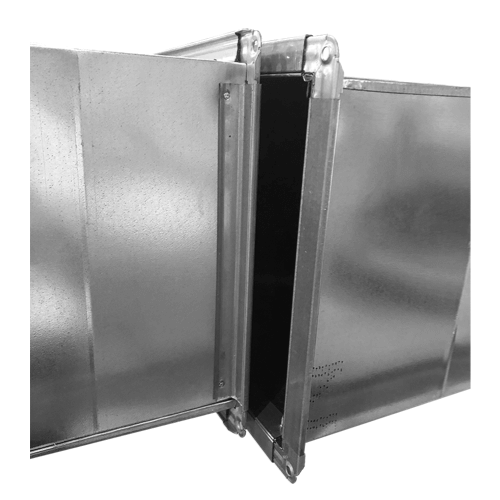

Installation & Connection
Why Choose BromingHvac Factory’s Double Wall Rectangular Duct
BromingHvac’s Double Wall Rectangular Ducts are becoming a top choice for businesses due to their combination of cost-effectiveness, advanced engineering, and exceptional performance. With cutting-edge technology and a commitment to quality, these ducts provide superior insulation, durability, and efficiency. Tailored to meet the diverse needs of industrial and commercial HVAC systems, BromingHvac’s double wall ducts offer reliable solutions at competitive prices, ensuring both optimal performance and long-term value for businesses seeking high-quality, innovative air distribution products.
Superior Quality and Durability
Our Double Wall Rectangular Ducts are crafted from premium materials like galvanized steel, ensuring robust durability and long-lasting performance in demanding HVAC environments. Designed to withstand high pressures, temperature fluctuations, and other harsh conditions, they provide reliable air distribution and ventilation for years to come.
Enhanced Energy Efficiency
With advanced insulation features, our double wall ducts significantly reduce heat loss and energy consumption. This not only improves the efficiency of your HVAC system but also helps lower operational costs, making them an ideal choice for energy-conscious businesses looking to maximize performance while minimizing expenses.
Customization Options for Your Specific Needs
At BromingHvac, we understand that each HVAC system has unique requirements. That’s why we offer customization options in size, material, and design to ensure that our Double Wall Rectangular Ducts fit perfectly into your system. Whether it’s for a commercial, industrial, or residential setup, our ducts can be tailored to meet your exact specifications.
Fast Delivery and Reliable Supply Chain
We know that time is critical in your projects. BromingHvac ensures on-time delivery and fast restocking to support your HVAC needs. Whether you’re working on a large project or need urgent replacements, we’re committed to keeping your operations running smoothly without delays.
Cost-Effective Solution with Long-Term Savings
BromingHvac’s Double Wall Rectangular Ducts are designed to provide long-term return on investment. Their durability and energy efficiency reduce maintenance and replacement costs, offering you a cost-effective solution that will save you money over the life of your HVAC system.
Welcome to BromingHVAC’s Double Wall Rectangular Duct Factory
Our plants are equipped with the most advanced technology, allowing us to engineer high-quality ducts in order to cater for the global industry’s requirements.
Mastering the Art of Compounding with the Double Wall Rectangular Ducts
This article explores Double Wall Rectangular Ducts, which are widely used in HVAC systems for efficient air distribution, enhanced insulation, and noise reduction. It covers the key components, operating principles, and practical applications of these ducts, offering a thorough understanding of this advanced equipment. Whether you’re just starting or looking to deepen your knowledge, this guide will help you understand how Double Wall Rectangular Ducts contribute to more energy-efficient, quieter, and reliable air management in modern HVAC systems.
Related products provided by bromingHVAC
Lasest Blog Posts
Frequently Asked Questions
answers to Common Queries about Double Wall Rectangular Ducts
Q：What are the advantages of using Double Wall Rectangular Ducts over Single Wall Ducts?
A：Double Wall Rectangular Ducts offer superior insulation compared to single-wall ducts. This insulation helps to maintain air temperature, reduce energy loss, and minimize noise. The double-layer design also enhances the structural strength, making these ducts more durable and efficient in environments where temperature control and noise reduction are critical.
Q：In which scenarios are Double Wall Rectangular Ducts most beneficial?
A：Double Wall Rectangular Ducts are particularly useful in applications that require high energy efficiency and reduced noise levels, such as commercial HVAC systems, industrial ventilation, and residential buildings with high insulation needs. They are ideal for environments where temperature stability and soundproofing are essential, such as hospitals, offices, and manufacturing plants.
Q：Are Double Wall Rectangular Ducts suitable for both heating and cooling systems?
A：Yes, Double Wall Rectangular Ducts are highly effective in both heating and cooling systems. Their insulation properties help maintain the desired temperature in both heating and air conditioning applications, making them more efficient and energy-saving compared to single-wall ducts, which are less effective at preventing temperature fluctuations.
Q：What are the key differences in installation between Double Wall and Single Wall Rectangular Ducts?
A：Double Wall Rectangular Ducts are generally more robust and heavier than single-wall ducts, which may require additional support during installation. However, their enhanced insulation properties can result in better long-term performance with fewer maintenance needs. Single-wall ducts are simpler and lighter to install but may not provide the same level of energy efficiency or noise reduction.
Q：How do Double Wall Rectangular Ducts help reduce energy costs in HVAC systems?
A：The insulation within Double Wall Rectangular Ducts helps reduce energy loss by keeping the air temperature stable as it moves through the ducts. This reduces the workload on heating or cooling units, leading to lower energy consumption and reduced utility bills. In contrast, single-wall ducts are more susceptible to heat gain or loss, making them less efficient.
